Welcome to my Hangar Sale page where I will be "cleaning out the hangar" and offering (mostly) aviation items for sale here.

Stinson Parts

Most significantly, because of major health concerns, I have decided to sell my Stinson project.  This is a tough decision, because so much of my life has revolved around my hobby involving Stinson aircraft.  But... I have to be realistic and practical.  It's also a sad but true fact that a project such as mine is worth more as individual pieces than as a whole lot, so I will be parting it out.  For those who have followed my progress on the project, you know there are many new or carefully restored parts.  As I organize, photograph and price the items, I'll be offering them for sale here.  As you scroll down towards the bottom of the page, you will see the parts that have already sold.  Many items go fast, so don't hesitate.  Unless otherwise noted, all items below are for a Stinson 108-3, though some parts are universal to the entire 108 series.  Check your parts book to be sure.

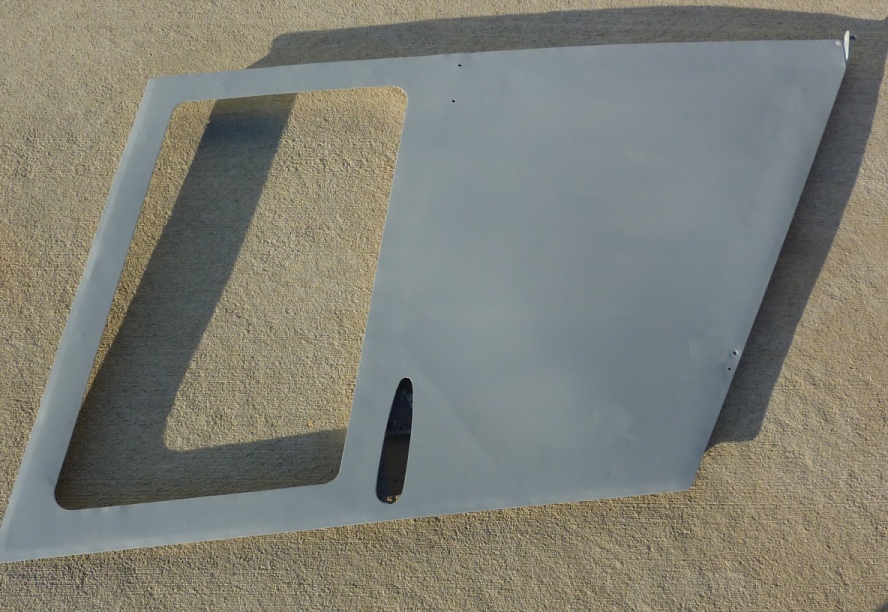

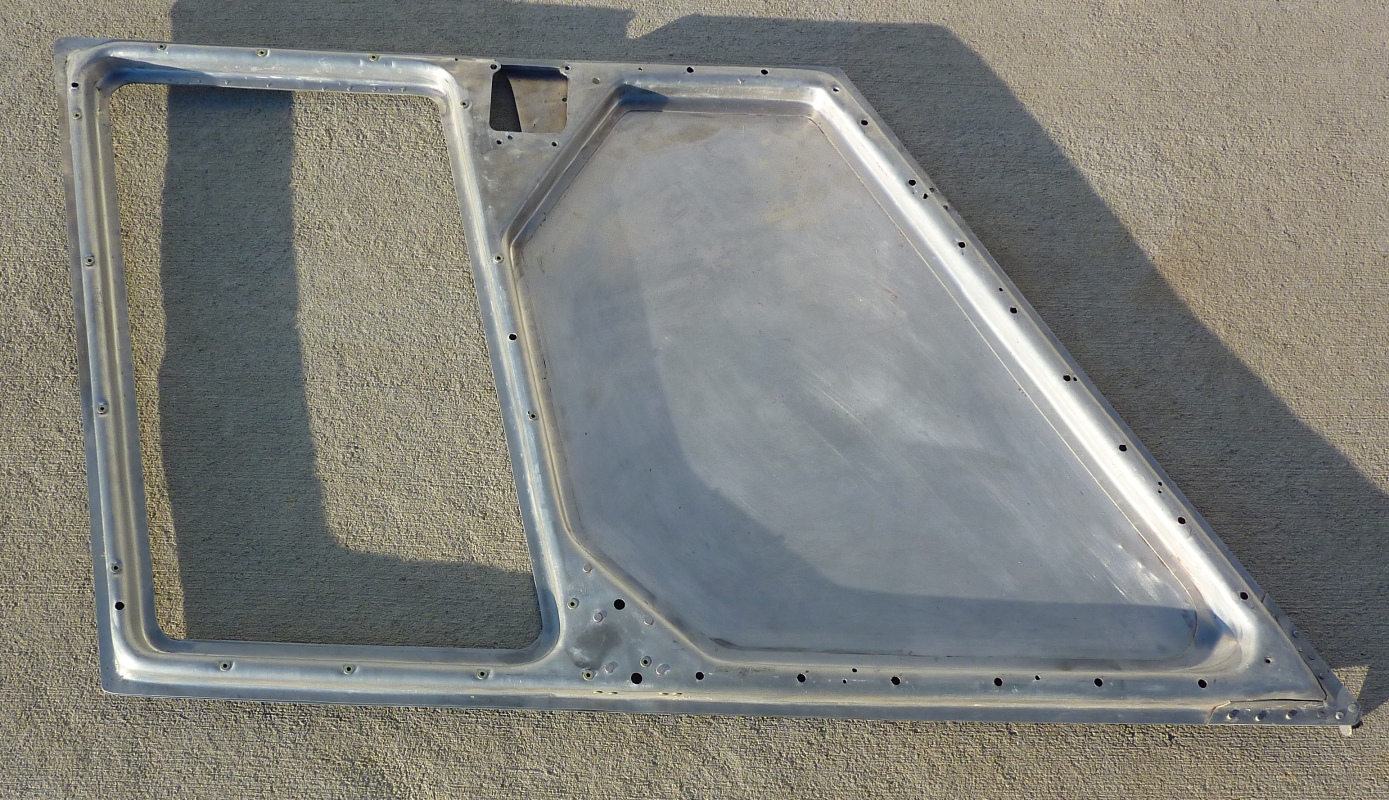

• Stinson 108-3 Right Cabin Door shell.  This is the bare door in very good, but not perfect condition.  There is a repair at the lower hinge point as shown in the photos, but this is a decent, serviceable door.  It has been stripped clean inside and out, and has a light coat of self-etching primer on the outside.  Click on the photos for a larger view. Univair price is $652.44.  My price is $195 plus shipping.

• Stinson J Clips.  This is a collection of the hard-to-find J clips that are used to attach various components (such as the floor boards) to the Stinson fuselage.  This batch includes 48 clips of various sizes, all from my 108-3 project.  Click on the photos for a larger view.  My price is $29.50 for the batch, plus shipping.  Sale Pending.

• Stinson Upper Door Hinge Brackets.  From my 108-3 project, fit all 108 series.  In good condition, primed with Stits epoxy primer.  $12.95 each, or $24 for the pair, plus shipping.

• Stinson Cabin Fresh Air Vents.   These are the front cabin vents that are located at the wing root.  In very good condition, from my 108-3 project, cleaned up and ready for paint.  Click on the photos for a larger view. $55 each, or $95 for the pair, plus shipping.

• Stinson firewall heat tube flange.  This is the stainless steel flange used for the heater duct work.  From my 108-3 project.  Clean, ready to install.  Click on the photos for a larger view.  My price is $18.95 plus shipping.

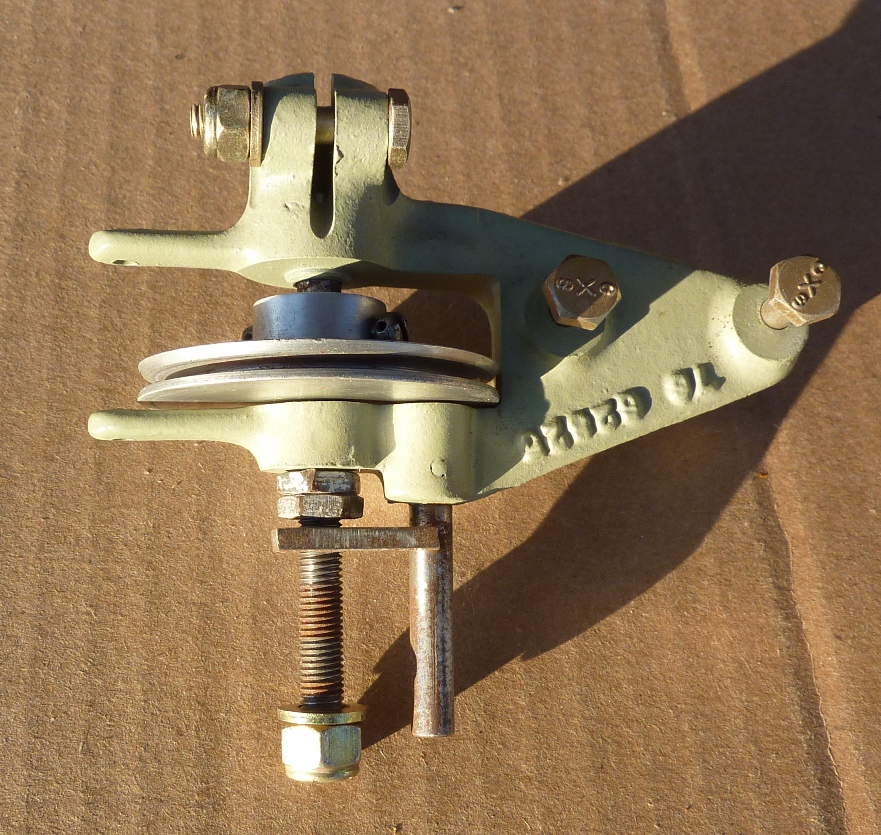

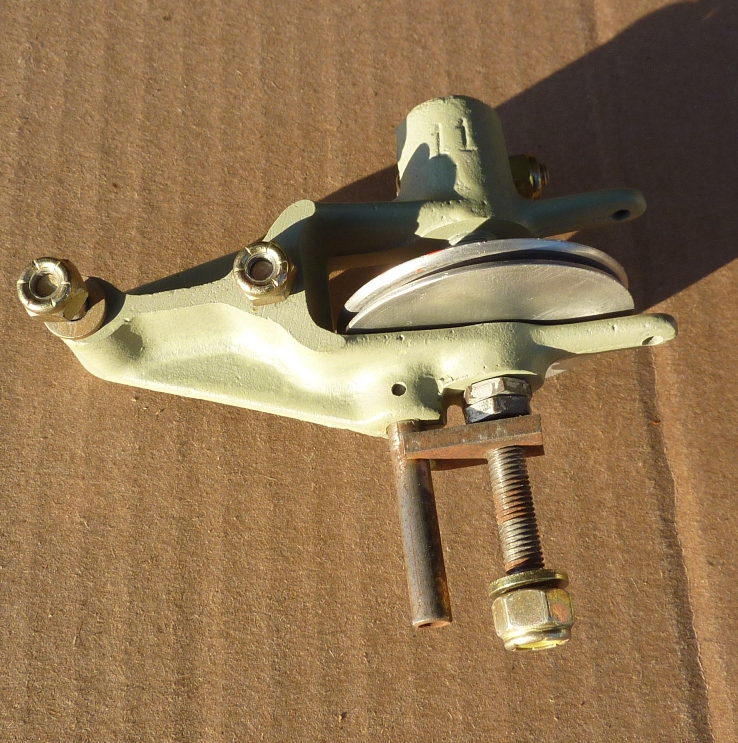

• Stinson Rudder Trim Tab Control Pulley Assembly.   From my 108-3, refurbished with new attach hardware, Stits epoxy primed bracket.  $125 plus shipping.

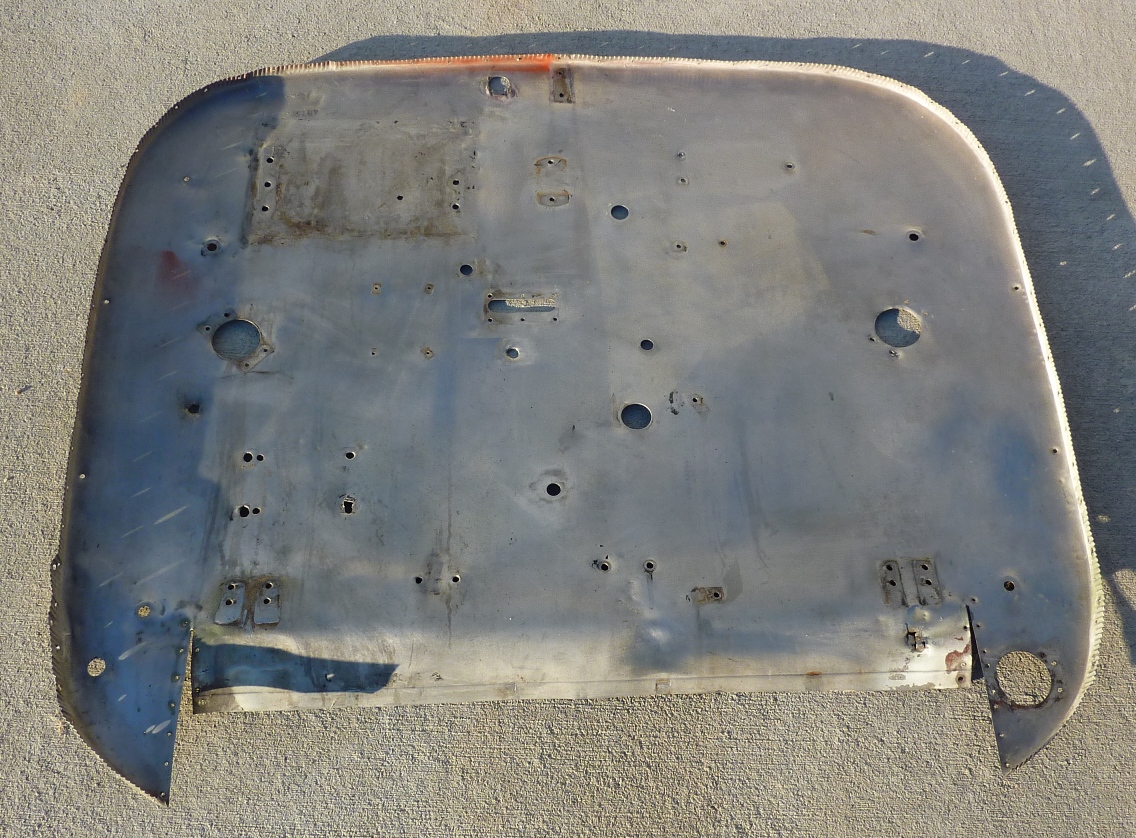

• Stinson Firewall.  This is the original firewall from my 108-3, in fair condition.   With some TLC, it would be serviceable.  Click on the photo for a larger view.  Univair price is $621.75, my price for this one is only $45 if you pick it up here in Virginia.  Price if I ship it is $75 plus the packing and shipping cost.

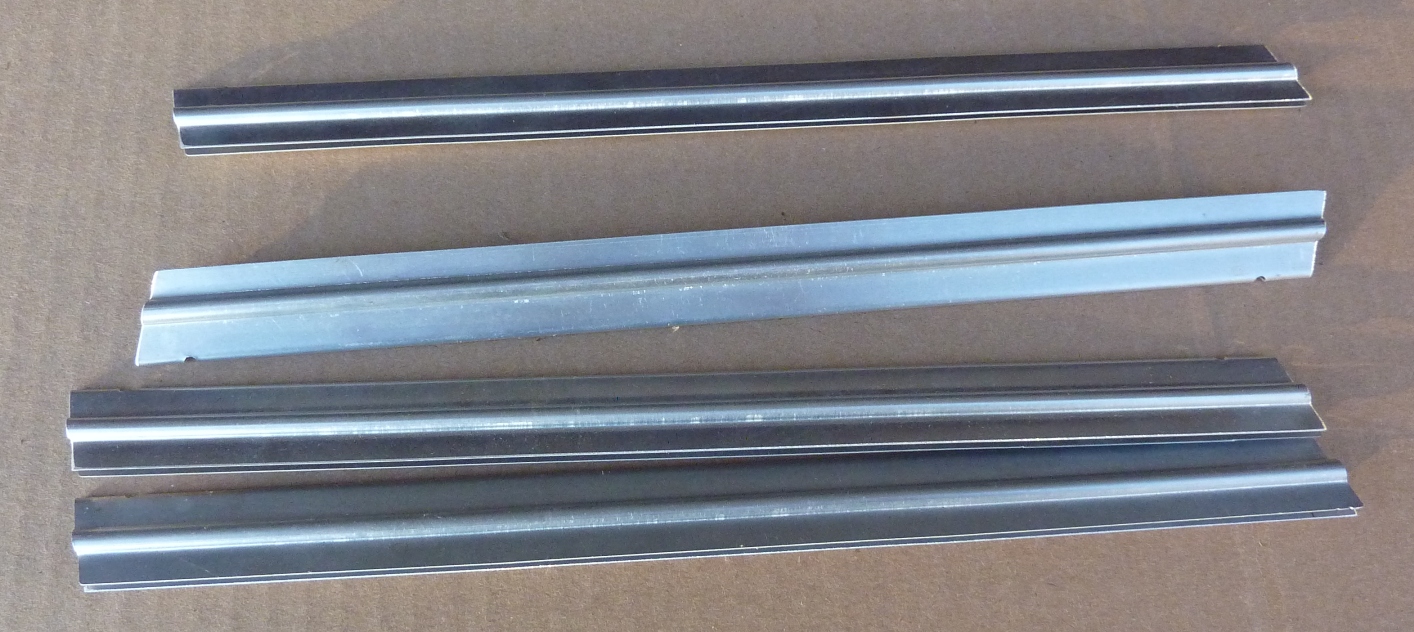

• Stinson Door Window Flanges.  These are new old stock aluminum flanges, 11.5" long that reinforce the plexigass side windows.  I believe these fit the 108 through 108-2 models.  Perfect condition.  $9.50 each, or $34.50 for the set of four, plus shipping.

• Stinson Wing Flap, Left side.  Part # 108-12906.  From my 108-3, in good condition.  Click on photos for a larger view.  Univair price is $2,479.95.  My price is $525 plus shipping. Pickup in Virginia preferred.

• Stinson 108-3 Fuel Tank, Left Side, 25 Gallon.  This is the left fuel tank from my project.  It is in good condition, with no dents or cracks.  I experienced no leaks with this tank when my plane was flying.  It will need to have the paint stripped from the top surface.  The original fuel cap  and drain valve are included, but the sender and vent are not.  Click on photos for a larger view.  My price is $650 plus shipping.

• Stinson Rear Cabin Vents.  This is a pair of very rare rear cabin vents that I picked up for an authentic original restoration.    These fit in the upper rear cabin window frames and were used only on the 108-3.  In good original condition - even original paint.  Click on the photo for a larger view.  My price is $35 each or $60 for the pair, plus shipping.

• Stinson 108 Left Wing Tip.  This is a left tip that I believe is from an earlier 108.  It fits my 108-3 wing but is constructed somewhat differently.  I bought this to use on my project, but decided not to use it.  I would rate it as "fair condition" but with a little work could be airworthy. Click on photos for a larger view.   Univair sells a new wingtip assembly for close to $1200.  My price for this one is $95 plus shipping. Price Reduced!

• Stinson 108 Series Lower Cowl, Part # 108-6021401-70.  From my 108-3.  In good condition with no dents.  There are small cracks at the front of the air scoop, and these have been repaired with internal doublers. Click on photos for a lager view. Univair price is $1719.53.  Because of the size of the cowl, I prefer pick up here in Virginia.   My price is $625.  Sale Pending.

• Stinson 108 Series Exhaust System.  Removed from my 108-3 with the Franklin 165 engine.  Includes both mufflers (PN's 108-6221702 and 108-6222702) as well as the tail pipes (PN's 108-622711-0 and 108-622711-1).  These are in good, but not perfect condition.  One muffler has a small (3/4") crack in the heat muff attach flange, which should be easy to repair.  One tailpipe has been drilled to accept an EGT probe.  Click on photos for a larger view.  Univair price for the pair of mufflers is $1565.06.  Univair price for both tailpipes is $545.39.  My price for everything is $475 plus shipping.  Price Reduced!

• Stinson Landing Gear Beam Assembly, Left Hand. Part # 108-5111000-2.  This is the main gear assembly from my 108-3, serial # 108-4197.  It is the late model gear and includes the heavier wall axle of the later models, sometimes referred to as the "Ski Axle."  It is in very good condition and has been bead blasted and primed with Stits epoxy.  The axle nut is included.  Click on the photo for a larger view.  Univair price is $1842.63.  My price is $395 plus shipping.  Price Reduced!

• Stinson Landing Gear Beam Assembly, Right Hand. Part # 108-5111000-3.  This is the main gear assembly from my 108-3, serial # 108-4197.  It is the late model gear and includes the heavier wall axle of the later models, sometimes referred to as the "Ski Axle."  It is in very good condition and has been bead blasted and primed with Stits epoxy.  The axle nut is included.  Click on the photo for a larger view.  Univair price is $1842.63.  My price is $395 plus shipping. Price Reduced!

• Stinson Horizontal Stabilizer.  Part Number 108-2111020.  This is a used 108-3 stab that I bought for my project because it was in pretty good condition.  There are two very small dents (from thrown stones perhaps) on the lower  left side and there is some spotty light corrosion internally on the ribs and skins.  Otherwise, it looks good.  I believe this is a good candidate for refurbishing.  Click photos for a larger view.  Univair price is $5,652.53.  My price is $695.  Because of the size of this item, I prefer that you pick it up here in Virginia.  Price Reduced!  ( I also have another stab, the original from my plane,  that is a good candidate for reskinning - my price for that one is $450.)

• Stinson Vertical Stabilizer Rib.  Part # 108-2312050-12.  Original from my 108-3.  I disassembled my vertical stab because of a cracked rear spar.  I  cleaned all the parts but never did get to the reassembly.  This rib is in excellent condition. Click on the photo for a larger view.  Univair price is $87.75. My price is $35 plus shipping.  Price Reduced!

• Stinson Vertical Stabilizer Rib.  Part # 108-2312050-14.  Original from my 108-3.  I disassembled my vertical stab because of a cracked rear spar.  I  cleaned all the parts but never did get to the reassembly.  This rib is in excellent condition. Click on the photo for a larger view.  Univair price is $52.38 My price is $24.50 plus shipping. Price Reduced!

• Stinson Vertical Stabilizer Rib.  Part # 108-2312050-6.  Original from my 108-3.  I disassembled my vertical stab because of a cracked rear spar.  I  cleaned all the parts but never did get to the reassembly.  This rib is in excellent condition. Click on the photo for a larger view.  Univair price is $65.35. My price is $32.50 plus shipping.  Price Reduced!

• Stinson Vertical Stabilizer Dorsal Skin, RH.  Part # 108-2312050-53.  Original from my 108-3.  I disassembled my vertical stab because of a cracked rear spar.  I  cleaned all the parts but never did get to the reassembly.  This skin is in excellent condition. Click on the photo for a larger view.  Univair price is $80.07. My price is $45 plus shipping. Price Reduced!

• Stinson Brake Lines.  From my project in good condition.  These are the lines that run between the master cylinder coil lines and the flex hoses at the landing gear pivots.   They appear at the bottom of Figure 27 in the Stinson Parts Catalog, but are not itemized in the parts list.  Fittings and attach clips included.  Click on the photo for a larger view.  I will sell the pair for $58.50 plus shipping. Price Reduced!

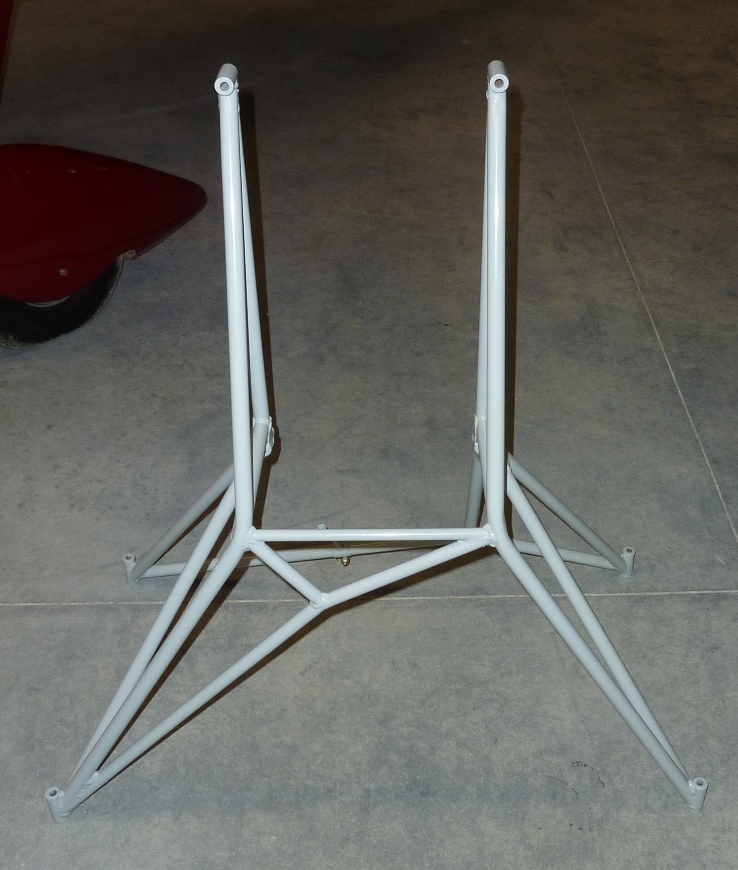

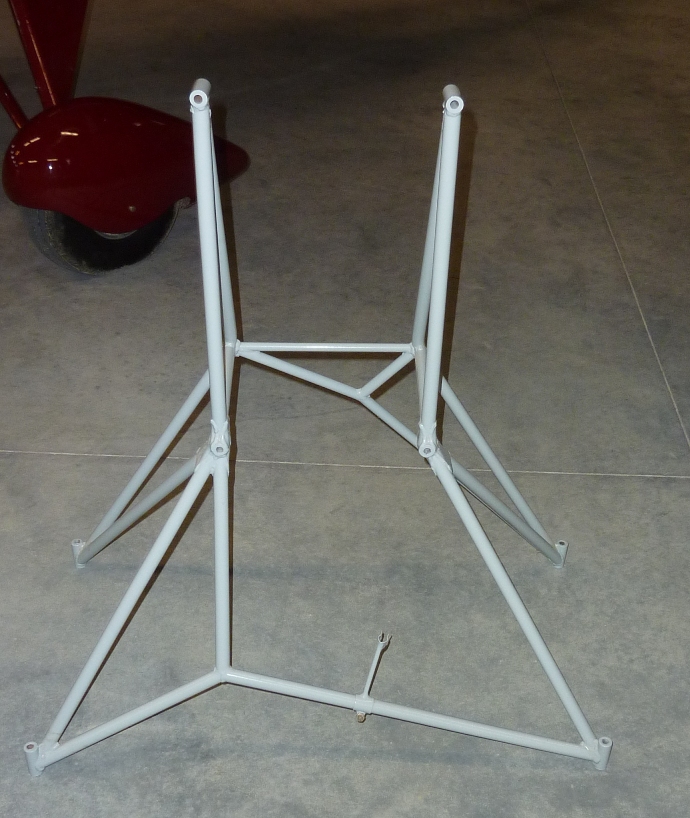

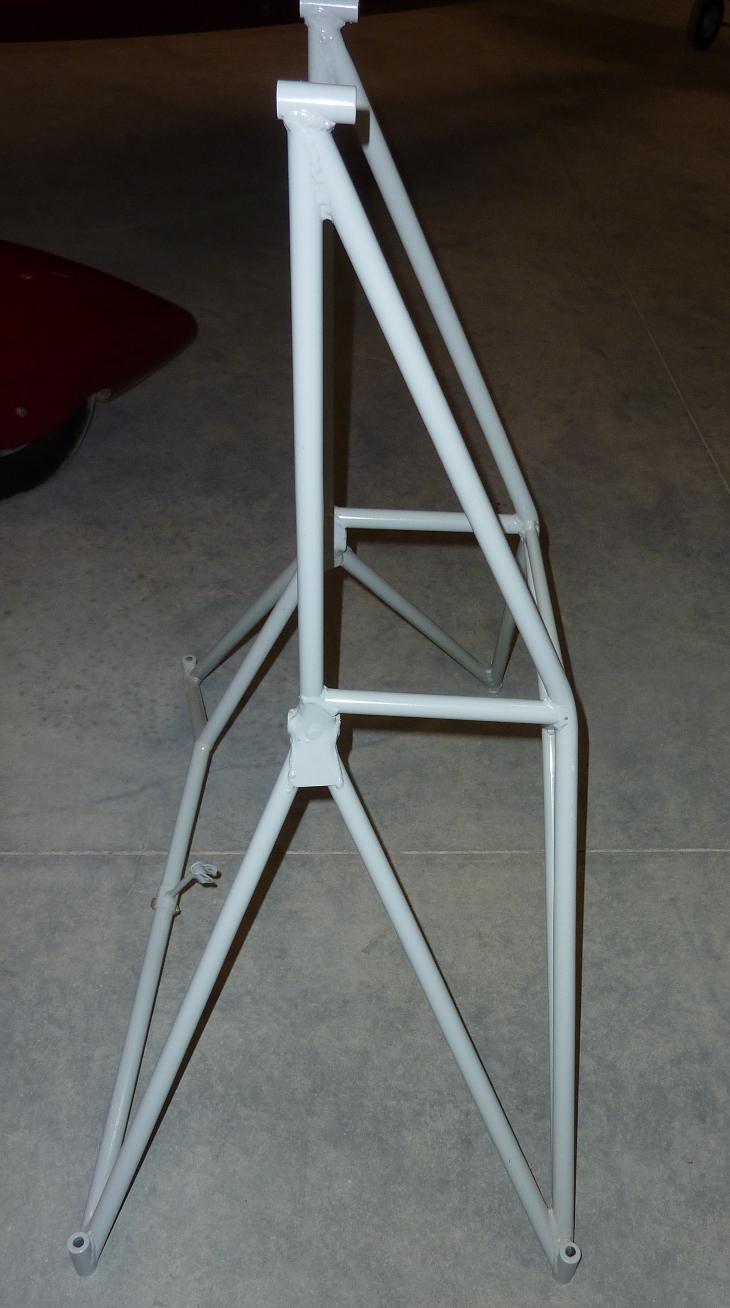

• Stinson Engine Mount, Part # 6212000.  Original on 6197M.  Powder coated light grey and ready for installation.  Click on any photo above for a larger view. Includes # 6222506 mixture control bracket.  For 165 Franklin but can also be used on the 150 Franklin.  Univair price is $1802.95.  My price is $395 plus shipping.  Price Reduced!

• Stinson Vertical Stab Center Hinge Fitting. Part # 108-2611012.  Unused from Univair.  Click on photos for a large view.  Univair price is $118.67, my price is $48.50 plus shipping.  Price Rweduced!

• Stinson Instrument panel overlay, basic blind flight, Part # 8932005-1.  Purchased new from Univair, stripped and ready for paint. Perfect condition. Sold!

• Stinson Right Hand Wing Leading Edge Skin, Inboard, Part # 1111041-9.  Purchased new from Univair but never installed.  Sold!

• Stinson Right Wing Leading Edge Skin, Outboard, Part # 1111041-11.  Purchased new from Univair but never installed.  Sold!.

• Stinson Flap Control Cable, Part # 1141506.  Purchased new from Univair but not installed. Sold!
• Stinson Elevator trim tab cable, Part # 3041615-1.  Purchased new from Univair but not installed. Sold!
• Stinson Tachometer cable, Part # 1536403.  This is the correct 36" tach cable purchased new from Univair, never installed. Sold!
• Stinson Elevator trim tab cable, Part # 3041615-1.  Purchased new from Univair but not installed. Sold!
• New Stinson windshield set, purchased new from LP Aero Plastics in May of 2006.  Clear, left and right, 552C/553C.  Sold!
• Stinson Instrument panel, flight instruments, wiring harness and avionics. Sold!
• Stinson Front seat frames.  Sold!
• Stinson Station Wagon Wood Panels.  Sold!
• Stinson Left Wing Tip Assembly, part # 1111050-0.  Includes the spar rib, part # 1111122.  This is used but in excellent condition.   Sold!
• Trans-Dapt Remote Oil Filter Bracket, Part # 1045.  New in original packaging.  Sold!
• Real Gasket pushrod tube seal set for Franklin, RG-17864-6 lower and RG-17794-6 upper. New.  Sold!
• Battery Box. Sold!
• Cabin Heat Valve. Sold!
• Stinson Firewall Cowl Support bracket.  Part # 108-6021405.  Refurbished, from my Stinson, sandblasted, primed and painted light gray with new rivnuts and hardware included.  Sold!
• Stinson Landing Light Lens, Part # 108-1111091.  Purchased new from Univiar but never installed.  Perfect.  Sold!
• Stinson Glove Box door.  The original etched door, as used on the Stinson 108-1, 108-2, and 108-3.  I found this at a salvage yard.  It is pretty nice, but has a blemish on the lower right face.  Click on the photo for a larger view. With hinge but without knob. $20 plus shipping. Sold!
• Stinson Oil drain tube, part # 6201011-6.  With hoses and clamps.  Purchased new from Univair but never installed.  Sold!
• Stinson Left Wing Leading Edge Skin, Outboard, Part # 108-111041-10, removed from my project, in pretty good serviceable condition.  Some very minor dents along outboard edge.  Sold!
• Stinson Nose cowl, part # 6021401-52.  New from Univair, perfect, in primer as received from Univair.  Sold!
• Stinson Firewall.  Sold!
• Stinson Boot cowls.  Sold!
• Complete set of Stinson rear side window rubber window channel pieces, part # 33197-R (channel) and # 34465-R (insert).  These are for the 108-3 model only, purchased new from Univair, unused. Two six foot sections of each.  Sold!
• Stinson Flap Hinge Fairings, set of 6.  Cast aluminum.  These were used on late model 108-3's but fit all Voyagers. Purchased for my project but never used.  Click on the photo for a larger view.  $275 plus shipping.  Sold!
• Stinson Fuel Valve Kit, Univair Part # 9010076-12.   Purchased new from Univair but never installed.  For 165 HP Franklin installation with 1.2" fuel lines.  Includes the service letter describing installation.  For more info on this new and improved fuel valve, click here.  Sold!
• Stinson Spinner Assembly - metal prop.  Sold!
• Stinson Brake master cylinders. Sold!
• Delco Starter for Franklin 165.  Sold!
• Delco Generator for Franklin 165. Sold!
• Stinson Voyager Aft Cabin Heat Duct Assembly and Grill.  Refurbished with new hardware and nylon rub strip. Sold!
• Stinson Door Catch Clip.  Part # 108-3000250.  This is the original stainless door catch that attaches to the wing strut to hold the door in the open position. New from Univair in the original package.  Sold!
• Stinson Fuel Valve Handle, part # 1902694, and Shaft, part # 6222106.  In good condition from my project. Click on the photo for a larger view.  Sold!
• Stinson Engine Baffle Set, Univair Part # 165BS.  This is the complete set of engine baffles for the Franklin 165.  I purchased the set new from Univair for my project but never used it.  Click on the photos for a larger view. The Univair price is $607.90.  I will sell for $475 plus shipping.  Sold!
• Rudder Cable Fairings.  Made of ABS plastic.  Use during recovering at the spot where the rudder cables exit the fuselage fabric.  Sold!
• Stinson Flexible Brake Hose Assembly.  Part # 108-50101304-1. Recently purchased from Univair for my project.   Sold!
• Stinson Engine Oil Vent Tube.  This is the aluminum vent tube that attaches to the firewall on the 108-3.  In like-new condition, with clamps.  From my project Stinson.  Sold!
• Stinson Landing Gear Strut Washers.  These are the correct washers that are used as spacers inside the landing gear shock struts to adjust strut length.  From my project.  Sold!
• Stinson Rudder Bar Springs.  Part # 108-3042431-6.  Purchased new from Univair, never used.  In original package, unopened.  Sold!
• Stinson Cabin Heat Shroud, Part # 622209. Purchased new from Univair and never installed. Sold!
• Stinson Carb Heat Shroud, Part # 6221210-2.  Purchased new from Univair in 1990 and removed when I started the restoration in 1993.  About 45 hours on the shroud, still in excellent condition with no cracks or dents. Sold!
• Stinson Control Column Assembly.  Part # 108-3041100.  Bead blasted and primed with epoxy primer.  New universal joint boots.  Original on 6197M.  Click on photos for a larger view.  Sold!
• Stinson Fuselage Aileron Idler Cable Assembly, Part # 108-3041118.  Purchased new from Univair for my project but not used.  Sold!
• Stinson Voyager Flap Handle Assembly.  From my 108-3 project.  Refurbished, powder coated burgundy.  Grip is in nice but not perfect.  New hardware included.  I will not sell the grip separately.  Sold!

• Stinson Fuselage-Horizontal Stabilizer Fairing Plate, Left side - for 108-3.  From my project, newly fabricated using original as pattern.  Epoxy primered.   Sold!

• Stinson Trim Blueprint - drawing # 108-3092140.  This is the factory blueprint showing the paint trim details and locations for the 108-3.  Size is 36" x 24".  Some details are shown full scale.   I purchased from Univair. Sold!

• Stinson Wing Covering Blueprint - drawing # 108-1101000.  This is the factory blueprint for covering the wing on the 108 series.  Size is 42" x 36".  Some sections are difficult to read.   Sold!

• Stinson Fuselage-Horizontal Stabilizer Fairing Plate, Left side - for 108-3.  From my project, newly fabricated using original as pattern.  Epoxy primered.   Sold!

• Stinson Landing Gear Strut Opening Retainer, Left, part # 108-3001434-6 and right, #108-3001434-7.  From my project, stripped and primed with epoxy primer.  Good condition.  Rivnuts replaced with plate nuts.  Sold!

• Stinson Rear Cabin Heat Tube.  Flexible aluminum tubing that runs from the firewall fitting to the rear cabin heat vent.  From my project in nice condition.  Sold!

• Stinson Wing Covering Blueprint - drawing # 108-1101000.  This is the factory blueprint for covering the wing on the 108 series.  Size is 42" x 36".  Some sections are difficult to read.  Sold!

• Stinson Fuselage-Horizontal Stabilizer Fairing Plate, Right side - for 108-3.  From my project, newly fabricated using original as pattern.  Epoxy primed.  Sold!

• Stinson Parking Brake Cable.  Original style with the tan knob which is no longer available.  Good condition.  $45 plus shipping.  Sold!

• Stinson Trim Blueprint - drawing # 108-3092140.  This is the factory blueprint showing the paint trim details and locations for the 108-3.  Size is 36" x 24".  Some details are shown full scale.  Sold!

• Stinson Baggage Door with keyed latch.  Sold!

• Whelen Strobe Power Supply.  Model HDACF.   Purchased new for my project.  This power supply will operate up to 3 strobe light head assemblies.  When operating two lights in the alternating mode, 42 joules of power are produced for each light. While in simultaneous mode, power to each light is 21 joules.  Installation Guide.  Sold!

• Whelen Wing Tip "Piggyback" Strobes.  Part # A650.  Purchased new for my project, in original carton.  Click on photo for a larger image. These add-on units convert standard Whelen or Grimes postion lights to strobes.  Sold!

• Unison Slick Ignition Upgrade Kit K-6599 for the Franklin  engine. Purchased new from Mattituck for my Stinson project, but never used.  Still in original cartons.  Includes two 6399  magnetos with impulse couplings and the M-6056 ignition harness for the Franklin as well as new attaching hardware and Slick Service Letter SL3-92A.  The harness has never been out of the box and includes all the fittings and clamps. Sold.

• Franklin Magneto Drive Gears, part # 18543.  From my engine, excellent condition with 170 hours since new.  These are the late style gears that use the one-piece absorbers, part #19313.  Sold!

• STINSON emblem from the original panel on my Stinson.   Sold!

• Airtex Baggage Compartment Curtain Assembly.  Purchased new for my project.  Sold!

• Stinson Fuel Tank, 50 gallon, right side. Sold!

• Stinson Upper Landing Gear Fairing Clamp Assembly.  Part # 108-5101103.  From my 108-3 project, bead blasted, epoxy primed, with new hardware. Excellent condition. Sold!

• RAM mount to hold  a handheld radio.   Clamps to fuselage tubing and adjusts to fit various size radios.  Excellent condition. Sold!

• Stinson Elevator and Rudder Trim Placcard, part number 108-8742200. Purchased new from Univair but not installed. Sold!

• Stinson Upper Flap Control Cable Assembly, part number 108-3041511. Purchased new from Univair for my project. Sold!

• Stinson Windshield Retainer.  Fabricated for my project with new T-nuts.  Sold

• Stinson Rudder Bar Return Springs, part # 108-3041002.  Purchased new for my project.   Sold!

• Stinson Rudder arm, part # 2583.  Purchased new from Univair but never installed.  Perfect.   Sold!

• Stinson Grill, Engine nose cowl, right hand, part # 8541008-7. Original from my project, but in nice condition.  Sold!

• Stinson Aileron Control Cable, Part # 1141208.  Purchased new from Univair but not installed. I have two of these available.   Sold!

• Stinson Aileron Idler Cable, Part # 1141206.  Purchased new from Univair but not installed.  Sold!

• Stinson Mid-Cabin Floorboards.  These are the sections behind the oleo strut tunnel.  I fabricated these for my 108-3 of 5mm aircraft birch plywood. They have a clear polyurethane varnish finish.  Click on photo for a larger view.  $80 for the pair, plus shipping.  Sold!

• Aircraft Pulleys.  AN210-4A  or MS24566-4B (3 1/2") and AN 210-3A or MS24566-3B (2").  I bought all new pulleys for my Stinson project.  Sold!

• Stinson Control Yokes.  Original on 6197M.  Refurbished by Garry McCoy who installed a PTT switch on one side and had the shafts chromed.  The one with the PTT switch has some small chips on the paint, the other one is perfect. Sold!

• Franklin 6A4-165-B3 Engine, heavy case, serial #31976.  This is the original engine that came with NC6197M.   Sold!

• Imperial-Eastman 1/2" Fuel Valve and Tank-to-Valve Fuel Lines.  The valve is the original style 1/2" valve used with the 165 Franklin.  This valve is no longer available new.  I bought this valve from Univair in 1986 when they were still available and had it on my Stinson from 1986 until 1993, about 170 hours flying time.  I purchased the fuel lines, part # 108-6222100-10 for the right, part #108-6222100-8 for the left, new from Univair for my restoration project.  I orignally intended to install the new style Univair fuel valve, but changed my mind so I would have the option of installing a more powerful engine in the future.  The Univair valve, though very nice, is not approved for the larger engines.  So, a few years back I had the Imperial-Eastman valve overhauled by Frank Bailey.  He did a nice job. I bought new fittings for the Imperial valve.  Univair's price for the fuel lines and the new style valve totals $668.76.  That's $153.58 each for the fuel lines and $361.60 for the valve. I want to sell the original valve and lines as a matched set, with the fittings.   The fuel lines have the clips and are ready to install.   If you plan to install a larger engine - such as a Lycoming O-360, this is a good deal.    Sold!

• Stinson Elevator and Rudder Trim control assembly, part number 108-3042460-2.  From my 108-3 project, in nice condition.  Click on photos for a larger view.  Univair price is $644.41.  My price is $250 plus shipping. Sold!

• Stinson Cabin Assist Handles with backing plates.  From my 108-3 in nice condition.  Click on photos for a larger view.  Handles are part # 108-3412029.  Univair price is $34.45, my price is $20 each plus shipping.  Plates are part # 108-3092115.  Univair price is $6.19, my price is $3 each plus shipping.  Sold!

• Stinson Front Cabin Floorboards.  I fabricated these for my 108-3 of 5mm aircraft birch plywood. They have a clear polyurethane varnish finish.  Click on photo for a larger view.  $80 for the pair, plus shipping.  Sold!

• Scott 3200 Tail Wheel.  This one actually came from my neighbor's Stinson 108-1.  I had a new one and we traded.  This one is in nice shape with an almost new wheel and tire.  Click on the photos for a larger view. Univair's price for a new Scott 3200 is $2,821.38.  (Yikes!)  My price is $750 plus shipping.  You can buy a new Alaskan Bush Wheel replica for about $1000, but this is a genuine Scott for a lot less.  Sold!

• Stinson Pitot Tube, Part # 108-1131002.  Used, from my Stinson.  In nice condition.   Univair price is $218.68.  My price is $110 plus shipping.  Sold!

• Grimes Wingtip Position Lights, Model E, part # A-1285-R-12.  One red and one green.  Manufacture date 10/78.  I purchased these new for a biplane project I was building back in the early 80's but never used them, so planned to use them on my Stinson.  These Grimes Model E  wingtip lights are hard to find now.  Because of that, Aircraft Spruce recommends using the less expensive Whelen units that go for $187.95 each.  If you want the original parts as used on the Stinson, this is your opportunity.  My price is $95 each, plus shipping. Sold!

• R.A. Miller AV-10 Comm Antenna.  Recently purchased new from Aircraft Spruce for my Stinson project but never installed.  Perfect!  Aircraft Spruce Price is $128.50.  My price is $105 plus shipping. Sold!

• Stinson Windshield Cover.  Fits 108 series, snaps in place, protects windshield from weather, protects panel from sun damage.  Slightly used, good condition.   $20 plus shipping. Sold!

• Whelen HD-60 Strobe Installation Kit.  Purchased new for my project.  Includes appropriate wire and connections for both wings when using a centrally located power supply, such as the Whelen HDCAF.  Whelen list price is $126.  My price is $60 plus shipping. Sold!

• Potter & Brumfield Circuit Breakers.  Part number W23X1A1G15.  15 amp rating with push/pull actuator.  I purchased more than I needed for my project and have three new ones from Aircraft Spruce.  ACS prices is $19.45 each, I will sell for $9.50 each plus shipping.  Sold!

• HobbyAir Pro 1 Fresh Air System, 110 volt.  Used, but in good condition.  The Hobbyair Pro 1 is a fresh air breathing system specifically designed for the amateur painter which allows only fresh air to reach the user's lungs.  Includes the pump unit with two stage, single speed, air bypass type motor, mask, belt and 40 foot delivery hose, fittings, filter, and cord.   Aircraft Spruce price is $392.95.  My price is $250 plus shipping.  Sold!

• Stinson Rear Cabin Window Panes.   Same size fits all 108 models.  New from .080 Lexan.   My price is $30 each or $55 for the pair plus shipping.  Sold!

• Stinson Rudder Bar Return Springs. Part # 108-3041002. Purchased new from Univair for my project. I have two available. Univair price is $18.66 each. My price is $13 ($26 for the pair) plus shipping. Sold!

• Stinson Station Wagon Woody Panels.  These are the original three pieces from my 108-3.  They are in poor condition but could be used as patterns to fabricate new panels or might be repaired by a talented woodworker.  Click on photos fora a larger view.  $95 plus packing and shipping charges.  Sold!

• Stinson Dual Brake Rudder Bar Set.  Includes torque tubes, brake pedal push rods, bearings, and brackets as shown.  From my 108-3 project.  Bearings and hardware are new.   Click on the photo for a larger view.  My price for the set is $485 plus shipping.  Sold!

• Lower Wing Strut Fairings.  Part #'s 108-1001003-0 and 108-1001003-1.  From my Stinson, in very good condition.  Includes the small ribs that go between the struts.  Click on the photo for a larger view.  Univair price is $149.15  each or $298.30 for the pair.  My price is $140 plus shipping for the pair with no charge for the small ribs. Sold!

• Recessed Non-Slip Inspection Plates.  Set of 8 used ones from my Stinson and one brand new one.  Click on photos for a larger view. These are $4.75 each from Aircraft Spruce.  I will sell the lot for $15 plus shipping.  Sold!

• Stinson Landing Gear Fairing Assembly, RH.  Part # 108-5101100-15.  This is the fairing from my project, fabricated using the original as a template.  Click on the photos for a larger view, including one showing the fairing installed on my project.  Univair price is $220.11.  My price is $87.50 plus shipping. Sold!

• Stinson Landing Gear Fairing Assembly, LH.  Part # 108-5101100-10.  This is the fairing from my project, fabricated using the original as a template.  Click on the photos for a larger view.  Univair price is $220.11.  My price is $87.50 plus shipping. Sold!

• Stinson Interior Wood Supports.  These are the wood parts that support the headliner and side panels that I made for my 108-3, using the originals as patterns.  Pieces are marked to help with installation. Click on the photo for a larger view. My price is $95 for the lot, plus shipping.  Sold!

• AN Bolt gauge.  A handy tool to have in the shop.  Automatically sizes all AN bolts up to 5?8" diameter and 5 inches long.  Manufactured by Nicholson Tool & Die Co.  $5.00 plus shipping.  Sold!

• Stinson Rudder Horn Assembly.  Part # 108-2611008-2.  Has the original parts # tag.  Purchased at a fly market, I believe this is new old stock (NOS).  Includes the CS2170 bearing.  Univair price is $70.81.  My price is $35 plus shipping.  Sold!

• Stinson Brake Lines.  Part # 108-5101000-18.  Purchased recently from Univair for my Stinson project but not installed.  These are the lines that go down the gear leg.  Univair price is $87.30  each. My price is $72.50 each plus shipping.  I will sell the pair for $140. Sold!

• Stinson Brake Line hose.  From my Stinson.  Braided type. These fit between the gear leg aluminum lines and the brake caliper with the Cleveland disc brakes.  Good condition.  $40 for the pair plus shipping.  Sold

• Univair Rudder Skin Kit for the Stinson 108-3 Rudder.  Univair part # 2602100-500.  Purchased new from Univair for my project but not used.  If you have a 108-3 rudder with damaged skins, this kit can be used to re-skin your rudder at a considerable savings over the price of a complete new rudder. The skins are the new Univair style rather than the orignal stamped style.  Includes the skins, the taillight bracket and fairings, all of the angles and the false spar necessary to re-skin a 108-3 rudder.  Also included are the large format factory blueprints and a parts list.   Univair price is $525.39.  My price is $395 plus packing and shipping.  Sold!

• Stinson Scuff Plates for lower door frame, part numbers 3092112-6 (left) and -7 (right).  From my project, in decent but not perfect used condition.  Click on photos for a larger view.  Univair price is $155.74 each, my price is $55 each plus shipping. Sold!

• Aircraft Seat Belts.  There were in the rear seats of my Stinson from 1987 through 1993 and had only occasional use.  They are in nice condition.  Manufactured in October 1986 by Beltmaster Corporation of Ashland, Oregon, I purchased these from Aircraft Spruce.  FAA TSo C-22f, rated for 1500 pounds.  With fittings.  Current ACS price is $47.50 each.  I will sell them for $25 each or $45 for the pair, plus shipping.  Sold!

• Aircraft Seat Belts. There were in the front seats of my Stinson from 1987 through 1993. They are in good condition but with scratches on the buckle face from use. Manufactured in October 1986 by Beltmaster Corporation of Ashland, Oregon, I purchased these from Aircraft Spruce. FAA TSo C-22f, rated for 1500 pounds. With fittings. Current ACS price is $47.50 each.  I will sell them for $12 each or $20 for the pair, plus shipping. Sold!

• Aluminum Seat Belt Brackets - from my Stinson.  $5 for the bunch plus shipping. Sold!

• Stinson Inner Wheel Pant Brackets.  Part Number 108-5101105-0 (LH) and 108-5101105-1 (RH).  I purchased these new from Univair for my plane and flew with them for a short time.  They are  in excellent condition.  Univair price for the pair is $259.25.  My price for the pair is $145 plus shipping.  Sold!

• Kohler Engine Primer, used.  I removed this from my Stinson during the restoration so I could install a new, cosmetically perfect part.  This one has scratches on the face of the knob.  It functioned perfectly when removed, and still operates smoothly.  I will sell for $75 plus shipping.  Sold!

• Stinson Shock Strut Assembly, part number 108-5181000.  These are the struts from my 108-3 project.  Refurbished with new seals and hard-chromed shafts to original specifications.  Cases were bead blasted and primed with Stits epoxy.  Univair price is $1,220.56 each.  My price is $785 each, or will sell the pair for $1500 plus shipping.  Sold!

• Cleveland Wheel and Brake Conversion Kit for Stinson 108.  Kit part number 199-08700.  From my project.  These were installed on my Stinson in 1987 and flown until 1993.  Total time on the wheels is under 130 hours.  During the restoration, I purchased new chrome discs and installed new pads.  These wheels and brakes are in excellent condition.  The kit includes two brake assemblies, two wheel assemblies, and the attachment bolts, nuts and washers.  Not included are the 207-12 flex hoses that go between the caliper and the brake line on the landing gear.  These are available from Univair for $136.  The installation instructions and drawings, though not shown,  ARE included.  Univair price for the kit is $1708.82.  My price (without the flex hoses) is $1085 plus shipping.  Sold!

• Aeroduct Tubing, CAT-8, 2" inside diameter, length 10'. Part # 05-29808. I purchased this recently for my project from Aircraft Spruce but never unwrapped it. The black tubing provides an original look for those restoring their Stinsons. Aircraft Spruce price is $58.50. My price is $45 plus shipping. Sold!

• Stinson Aileron Control Column cable set, part # 108-3041123-6 and -7.  Click on photo for larger view. Purchased new from Univair for my project.  Univair price is $106.71 each, or $213.42 for the set for left and right halves.  My price for the set is $160 plus shipping.  Sold!

• AstroTech LC-2 Digital Aircraft Clock, Part # AT420100.  Purchased new for my project.  Battery powered, with internal lighting (12V) for connection to the panel lighting circuit.  Fresh battery included and factory documentation included.  Aircraft Spruce price is $357.50.  My price is $235 plus shipping.  Sold!

• Stinson Landing Gear Fairing Bulkhead Set.  This is a complete set of upper LG fairing bulkheads.  The part numbers are 108-5101102-8, 108-5101102-9, 108-5101102-6 and 108-5101102-7.  I purchased these new from Univair for my project.  Finished in green primer as received from Univair.  Univair price for the set is $174.90. My price is $128.50 plus shipping.  Sold!

• Stinson Down Elevator Control Cable.  Part # 108-3041305-11.  Purchased new from Univair for my project. Univair's price is $78.53.  My price is $59.50 plus shipping. Sold!

• Stinson Elevator Control Bellcrank.  Part # 108-3041303.  From my project, in excellent condition.  Bead blasted and primed with Stits epoxy.  Includes bearing and hardware as shown.  Univair price is $96.04.  My price is $29.50 plus shipping.  Sold!

• Stinson Elevator Trim Tab Cable Assembly, part number 108-3041615-1.  Purchased new from Univair for my project. Univair price is $77.07.  My price is $62 plus shipping. Sold!

• Stinson Elevator Trim Tab Control Pulley Assembly.  Part # 108-3041605-2.  From my 108-3, refurbished with new hardware, Stits epoxy primed bracket.  $125 plus shipping.  Sold!

• Stinson Up Elevator Control Cable.  Part # 108-3041305-10.  Purchased new from Univair for my project. Univair's price is $78.53.  My price is $59.50 plus shipping.  Sold!

• Stinson Fuel Gauge Sending Unit, part # 7740-313.  This is the new style sender that is a direct replacement for the original AC sender.  This one is almost new and is in excellent condition.  I purchased it new from Univair and flew it on my Stinson for only 110 hours according to my log books.  The Univair price for the sender is $263.78.  My price is $215 plus shipping.  Sold!

• Marvel-Schebler MA-4-5 Carburetor.  Standard Carburetor for the 165 Horsepower Franklin, from my Stinson 108-3.  Was working fine when I disassembled my Stinson for restoration, has been  bagged and in storage since then.  Sold!

• Stinson Fuel Gauge Sending Unit, part # 151750.  This is the original AC fuel sender from my Stinson.  It was working properly when removed, but should be refurbished due to age and condition.  Keystone Instruments in Lock Haven, PA rebuilds these.  My price is $35 plus shipping.  Sold!

• Stinson Control Column Cover, Part # 108-3092118.  From my project, stripped and ready for paint.  Excellent condition. Univair price is $74.04.  My price is $50 plus shipping.  Sold!

• Stinson Station Wagon Floor Support Angle.  From my project, in good condition.  Stits epoxy primed.  I did not see the part number in the catalog, but the second photo shows the support installed.  The support angle sits where the two sections of the rear station wagon floorboard join.   My price is $17.50 plus shipping. Sold!

• Stinson Jacking Tool. Part # 108-590100. These tools fit into the inboard axles to permit jacking the main landing gear as described on pages 8-10 of the Stinson General Service Manual.  I made these using the drawing on page 9 of the General Service Manual.  Tubing is of 4130 steel, 1" x .049.    Univair price for these tools is $32.14 each, or $64.28 for the pair.  I will sell these for $32.50 plus shipping.  Sold!

•  Stinson Battery Relay.  Part # 70-111226-5.  (Supercedes 2295-7)  I purchased this new from Univair for my project but never used.  Univair price is $24.31.  My price is $19.75 plus shipping. Sold!

• Stinson Voyager Right  Aileron.  From my 108-3 project.  This is a serviceable all metal aileron with some blemishes.   Local pick up in Virginia only - no shipping.  $425.00. Sold!

• Stinson Voyager Left  Aileron.  From my 108-3 project.  This is a serviceable all metal aileron with some blemishes.   Local pick up in Virginia only - no shipping.  $425.00. Sold!

• Cessna 120/140 Vertical Fin.  Part # 043100. This is a nice vertical stabilizer that I picked up a few years back.  It is in nice condition with blemishes in the paint.  Skins are in excellent condition.  Univair price is $2,051.69  My price is $785 plus shipping.  Sold!

• Essex Engine Primer, new.  Part number K204-1/8.  Formerly made by Kohler.  I purchased this new from Aircraft Spruce for my Stinson project but never used it.  Aircraft Spruce price is $165.95.  I will sell for $130 plus shipping.  Sold!

• Stinson Rear Seat Sling Support Tube.  From my project, bead blasted and powder coated burgundy.  $20.75 plus shipping.  Sold!

• Stinson Wheel Pants.   Original, metal, with trim strips. These flew on my 108-3 for a few years.  These are cut to fit the Cleveland brake conversion.  They are in pretty good, but not perfect condition.  There is some Poly-fil filler and they have a light coat of self-etching primer. This is a nice pair of original wheel fairings for the Stinson 108.   My price is $500 plus shipping.  Sold!

• Stinson Rudder Cable Assembly, part number 108-3041003-2.  Purchased new from Univair for my project.  I have a pair for the left and right.  Univair price is $91.39 each.  My price is $69.50 each, plus shipping. Sold!

• Stinson 108-3 Rudder - from my project in fair condition.  Sold!

• Stinson 108-3 Vertical Stab - from my project.  Sold!

• Stinson Wing struts - from my 108-3. Sold!

• Stinson Rudder/Brake Pedals.  Part # 108-8542013-6.  Purchased new from Univair for my project. Sold!

• Stinson 108-3 Fuselage with data plate, logbook, and documentation.  This is the (almost) bare fuselage frame from my project, NC6197M, serial # 108-4197.  The fuselage has been repaired with new tubing as required and the entire fuselage was media blasted and primed with Stits epoxy primer.    Sold!

•  Bogert Tow Bar (Bogi-Bar). This is the Bogert tow bar I used on my Stinson with the Scott 3200 tail wheel. The Model Number is 4-TDG and it fits both the Scott 3200 and 3400 tailwheels. Shown in the collapsed position for stowage - pull the pin and the handle extends for a total length of 48". No longer needed as I use a different tow bar on my Aeronca. Click on photos for a larger view. List price is $89, my price is $39.50 plus shipping. Sold!

• Aeronca Chief Auxillary Fuel Tank.  This is the tank from a pre-war  65CA Chief.  It is rated at 8 gallons.  In good condition - no dents or apparent cracks.  Has filler tube and fitting for cabin Model A fuel gauge as well as the factory add-on overfill collector.  This is a rare, hard-to-find item. $195 plus shipping.  Sold!

• Stinson Carburetor Air Box.  Part # 108-6222807.  For 165 Franklin.  From my 108-3 project, in functional condition.   Univair price is $1,077.47.   My price is $75 plus shipping.  Sold!

• Stinson 108-3 Exterior Door Handles.  Beautiful refurbished original flush handles from my project plane.  These are in very nice condition and include new keyed lock tumblers with four matching keys.  The rotating lever  at the back of the tumble will need to be modified - it was on my "to-do" list and I never got to it.  My price is $125 for the pair plus shipping.  Sold!

• Rear Cabin Stinson Station Wagon Floorboards.  These are the rear floorboards I fabricated for my Stinson Station Wagon.  They are made of 6mm birch with 5 mm birch strips laminated around the perimeter and along the diagonals to maintain original strength.  They have a clear polyurethane finish. The aluminum channels have been sold but the wood pieces are still available.  I will sell both wood pieces for $85. Packing and shipping charges extra.  Sold!

• Stinson 108-3 Left Cabin Door shell.  This is the bare door in good, but not perfect condition.  There is a repair at the lower hinge point as shown in the photos, but this is a decent, serviceable door.  It has been stripped clean inside and out, and has a light coat of self-etching primer on the outside.  Univair price is $652.44.  My price is $175 plus shipping.  Sold.

• Stinson 108-3 doors.  I bought these years ago as extra doors for my project but did not use them.  I would rate them as "average" in condition.  The external door latches are included.   My price is $75 each or $145 for the pair, plus shipping.  Sold!

• Stinson 108-3 latch plates with interior handles.  From my 108-3 project, cleaned up and in nice condition.  Includes the hard-to-find small levers for the interior locks as well as the original interior handles.  My price is $125 for the pair plus shipping.  Sold!

• Stinson Gascolator.  This is the original gascolator from 108-3, sized for the 1/2" fuel lines as used on the 108-2 and 108-3.   It was manufactured by Kohler of Dayton, Ohio and has the casting numbers K2250B and 2259B at the top of the unit.  It is in good condition.  The glass tube has a small chip on one end, but that has been there with no problem for all the years I owned the plane (since 1986).  Includes the mounting hardware with cable clamp.  You can buy a new gascolator from Steve's aircraft for $280 (and they are very nice), but if you want to stick with the original style and like the visible feature of the glass bowl, this is an option.  My price is $75 plus shipping.  Sold!

• Rare Scott 3-24B-S tailwheel.  This is the original factory tailwheel used on the Stinson 108 series.  Note the "S" designation added to the normal 3-24B model number on the data plate, indicating this was manufactured for Stinson.  Some of the original Stinson Maroon paint remains on the unit.  I picked this up a few years ago while I was restoring my Stinson but decided to use a  Scott 3200.   For anyone interested in an authentic restoration, this would be the correct original tailwheel.  The Scott 3-24B is a steerable, full swivel tailwheel with a solid rubber 6x2 tire.  It accommodates a 1 1/2" tail spring, though a spacer assembly is available for adapting to a  1 1/4" tail spring.   There are two grease fittings. The unit appears to be in good condition.   The steering arms engage properly and release to full swivel mode when pressure is released. The tire is a Firestone "Sky Champion" with good tread, though clearly showing its age.  While originally designated the 3-24B, it was later renamed the Scott Model 2000.  Parts are available from Aircraft Spruce, though some are expensive (steering arm $368.95, fork $650.00, hub kit $349.00.)  The bearing set, tire and other small parts are reasonable. The major components here all seem good, so this is a valuable unit.  My price is $495 plus shipping.  Sold!

• Lang Tailwheel, Model D-501-A.  This is a Lang tailwheel unit without the wheel/tire assembly.  It is a full swivel, steerable tailwheel that uses a 6x2.00 solid rubber tire.  It fits a 1 1/2" tail spring, and includes an adapter to fit a 1 1/4" tail spring. I picked this up for my Stinson project a few years back, but decided to use a Scott 3200.  It is used, but appears to be in very nice condition.  The Lang tailwheel is approved for installation on many light aircraft, including the Aeronca 7AC, Piper J-3 and PA-12, Cessna 140, Luscombe and Taylorcraft.  It is also used on the Christen Eagle.  It is comparable to the Scott 2000. The complete tailwheel assembly (with wheel and tire) sells for $965.00 from Aircraft Spruce.  A new tire/wheel assembly for this unit can be purchased from Aircraft Spruce for $380.  My price is $250 plus shipping.  Sold!

• Stinson 108 Series Upper Cowl. Part Number 108-60211401-26.  From my 108-3, in good condition.  Right side has a new hinge and a small internal patch as well as repairs to the latch attach flange. Univair price is $1534.77.  My price is $495, or will sell left and right separately for $265 each.  Shipping extra.  Sold!

• Stinson 108-3 Right Wing.  This is the unrestored wing from my 108-3 project.  I believe this is a solid rebuildable wing with good spars.  There is some corrosion on the wing tip and leading edge skins, but I think this will clean up.  The fuel tank, slat, and aileron were sold separately and are not included. Sold!

• Stinson 108-3 Left Wing.  This is the unrestored wing from my 108-3 project.  I believe this is a solid rebuildable wing with good spars.  There is some corrosion on the skins,  especially around the landing light.  I think this will clean up, but replacing some skins may be preferred. There was minor damage to the outer wing tip and outboard skins, and these were removed and are not included. The slat and aileron were sold separately and are not included.  The fuel tank is available separately.  Sold!

• Stinson 108-3 Wing Flap, right side. Sold!

• Stinson Landing Gear Hinge Pin.  Part # 108-5111005.  From my 108-3 project.  Very good condition.  Spacer washers included.  Univair price is $174.06 each, $348.12 for the pair..  I will sell for $60 each or $100 for the pair, plus shipping. Sold!

• Stinson Forward Floor Support Angle.  Part number 108-8191000.  From my project, in good condition.  Stits epoxy primed.  Click on photo for larger view.  Univair price is $29.91.  My price is $18.50 plus shipping.  Sold!

•  Stinson Boarding Step, part #3411047-1 (right).  Original from my project, bead blasted and primed with Stits epoxy primer.  Nice condition. Univair price is $216.  I will sell for $50 plus shipping.  Sold!

• Stinson Upper Left Vertical Stabilizer Skin.  Part # 108-2312050-20. Original from my 108-3.  I disassembled my vertical stab because of a cracked rear spar.  I  cleaned all the parts but never did get to the reassembly.  This skin is in very good condition, though with a very small dent on one of the corrugations.  I believe it could be worked out.  Click on the photo for a larger view. Univair price is $554.03.  My price is $195.  Sold!



 If you have questions about the items for sale, feel free to contact me.  E-mail me here.
